G23,G23X,G24,E27 PL LED lamp bases view:www.griled.com

Link:http://www.griled.com/NewsView.asp?ID=71
We can make PL LED Downlight with the base of G23,GX23,GX23-2,G24-D2,G24-D3,G24-Q1,G24-Q2,G24-Q3.

G23 GX23 G24 PL LED Bulb:www.griled.com

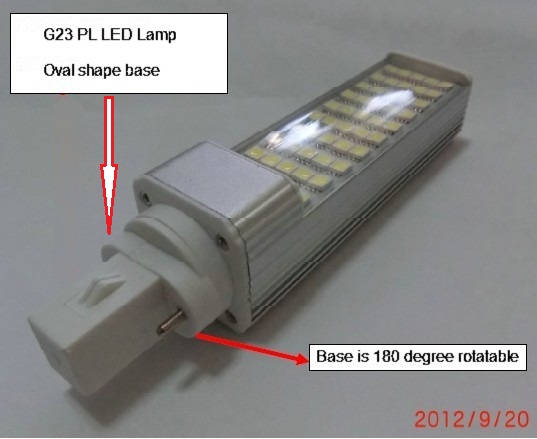

G23 GX23 G24 PL LED Bulb

Specification:

Power: 5W,7W,9W,11W,13W

Led Chip: Taiwan Epistar SMD5050

Efficient Lumen: 80-90lm/W

Color Temperature: 2800-3500K, Warm White; 4000-5000K, Pure White; 6000-7000K, Cool White

Beam Angle: 120 degree

CRI:> 75Ra

Working Voltage: AC85-265V 50/60Hz

Lamp Base: G23/GX23/G24/E27

Material: Aluminum+PC

Life Span: 40,000hrs

Warranty: 3 years

Microwave Sensor LED Tube for parking lot:www.griled.com

Microwave sensor led tube : best for Car parking lot, Lobby,stairs, station,airport,basement,warehouse...... Best sensor led tube technology in China now.

1. Detect any movement of people/car

2. You can dim the hold time and brightness

3. People/car moves, 100% bright; no move, only 5% bright.

Video on YouTube: http://www.youtube.com/watch?v=4PkZ4cd2d3o&feature=BFa&list=ULY8VSATCffOA

More info: www.griled.com

E27 PL LED Lamp 13W:www.griled.com

http://www.griled.com/ProductView.asp?ID=443

E27/G24 PL LED Lamp 13W

Specification:

Model No: PL-SMD5050-13W

Power: 13W (Replace Philips 26W)

Led Chip: Taiwan Epistar 64pcs*SMD5050

Lumen: 1050-1150lm

Color Temperature: 2800-3500K, Warm White; 4000-5000K, Pure White;

6000-7000K, Cool White

Beam Angle: 120 degree

CRI:> 75Ra

Working Voltage: AC85-265V 50/60Hz

Lamp Base: G23/G24/E27

Material: Aluminum+PC

Lamp Size: 158*35*35mm

Life Span: 40,000hrs

Warranty: 3 years

G23/G24/E27 PL LED Lamp 11W

http://www.ecosram.com/ProductView.asp?ID=442
G23/G24/E27 PL LED Lamp 11W

Specification:

Model No: PL-SMD5050-11W

Power: 11W (Replace Philips 22W)

Led Chip: Taiwan Epistar 52pcs*SMD5050

Lumen: 900-1080lm

Color Temperature: 2800-3500K, Warm White; 4000-5000K, Pure White;

6000-7000K, Cool White

Beam Angle: 120 degree

CRI:> 75Ra

Working Voltage: AC85-265V 50/60Hz

Lamp Base: G23/G24/E27

Material: Aluminum+PC

Lamp Size: 158*35*35mm

Life Span: 40,000hrs

Warranty: 3 years

PLC LED Downlight 9W

http://www.ecosram.com/ProductView.asp?ID=441

PLC LED Downlight 9W

Specification:

Model No: PL-SMD5050-9W

Power: 9W (Replace Philips 18W)

Led Chip: Taiwan Epistar 44pcs*SMD5050

Lumen: 750-850lm

Color Temperature: 2800-3500K, Warm White; 4000-5000K, Pure White;

6000-7000K, Cool White

Beam Angle: 120 degree

CRI:> 75Ra

Working Voltage: AC85-265V 50/60Hz

Lamp Base: G23/G24/E27

Material: Aluminum+PC

Lamp Size: 137*35*35mm

Life Span: 40,000hrs

Warranty: 3 years

G24 PL LED Downlight 7W

http://www.griled.com/ProductView.asp?ID=440

G24  PL LED Downlight 7W

Specification:

Model No: PL-SMD5050-7W

Power: 7W (Replace Philips 15W)

Led Chip: Taiwan Epistar 36pcs*SMD5050

Lumen: 600lm

Color Temperature: 2800-3500K, Warm White; 4000-5000K, Pure White;

6000-7000K, Cool White

Beam Angle: 120 degree

CRI:> 75Ra

Working Voltage: AC85-265V 50/60Hz

Lamp Base: G23/G24/E27

Material: Aluminum+PC

Lamp Size: 118*35*35mm

Life Span: 40,000hrs

Warranty: 3 years

G24 PL LED Lamp 5W

http://www.ecosram.com/ProductView.asp?ID=439

G24  PL LED Lamp 5W

Specification:

Model No: PL-SMD5050-5W

Power: 5W (Replace Philips 9W)

Led Chip: Taiwan Epistar 24pcs*SMD5050

Lumen: 400lm

Color Temperature: 2800-3500K, Warm White; 4000-5000K, Pure White;

6000-7000K, Cool White

Beam Angle: 120 degree

CRI:> 75Ra

Working Voltage: AC85-265V 50/60Hz

Lamp Base: G23/G24/E27

Material: Aluminum+PC

Lamp Size: 118*35*35mm

Life Span: 40,000hrs

Warranty: 3 years

PLC LED Bulb G24 9W

http://www.griled.com/ProductView.asp?ID=433

PLC LED Bulb G24 9W_G24 LED Light 9W China_G24 G23 E27 PL LED Lamp 9W_G24 PL LED Downlight_G23 PL led lamp

Video shared: YouTube

Specification:

Model No: ECO-PL-9W

Power: 9W (Replace Philips 18W)

Led Chip: Taiwan Epistar 8pcs*1W

Lumen: 800-850lm

Color Temperature: 2800-3500K, Warm White; 4000-5000K, Pure White;

6000-7000K, Cool White

Beam Angle: 160 degree

Base Rotary Angle: 340 degree

CRI:> 75Ra

Working Voltage: AC85-265V 50/60Hz

PF: >0.95 (Isolated Driver)

Diffuser Plate: All-aluminum reflective cup

Lamp Base: G23/G24/E27

Material: Aluminum+PC

Net Weight: 225g

Lamp Size: 176mm*40mm*40mm(G24) / 180mm*40mm*40mm(E27)

Package Size: L183mm*W41mm

Life Span: 50,000hrs

Warranty: 3 years

Features:

1. Each led chip with a all-aluminum reflective cup

2. Constant current isolated driver, no need to install ballast.

3. 50% energy saving: 5W replace Philips 9W, 7W replace 13W, 9W replace 18W

4. 340 degree rotary base: G23, G24 2 Pin/4 Pin, E27

5. Good heat dissipation performance with Chimney effect: Stretching aluminum lamp shell + heat sink structure +

Hollow thermal design.Higher temperature, faster airiness.

6. Application: Home, Office, Supermarket, Hospital, Hotel,etc.
